Sony KD-65XE9005 4K TV Review

Vincent Teoh

By offering both high-quality OLED and LED LCD models in its 2017 TV lineup, Sony is covering all the bases as far as consumer choice is concerned this year. The Bravia XE90 (also known as the X900E in North America) we’re reviewing today is a midrange television from the Japanese manufacturing, featuring UHD (ultra high-definition) screen resolution, direct-lit LED with full-array local dimming (FALD) backlighting, and Android TV platform. However, it lacks the X1 Extreme video processor and Dolby Vision support (pending firmware update) found on the step-up Sony XE93, XE94, A1 OLED and ZD9 series.

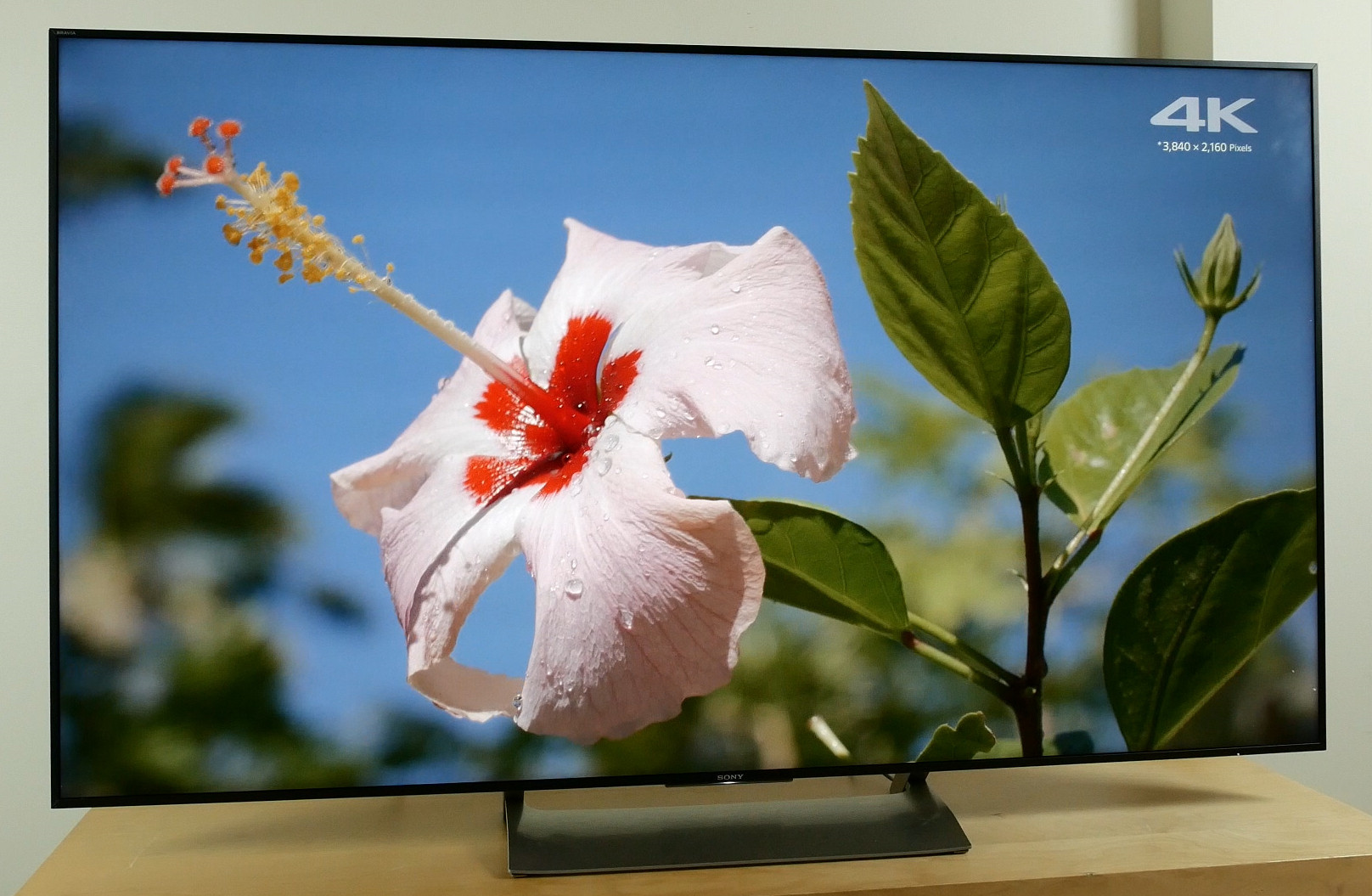

Sony XE90

Note: The specific unit we tested was the 65-inch Sony KD-65XE9005 (exact model number KD65XE9005BU) which is the three-pin-plug British version. Other screen sizes are available, namely the 49-inch KD-49XE9005, the 55-inch KD-55XE9005 and the 75-inch KD-75XE9005.

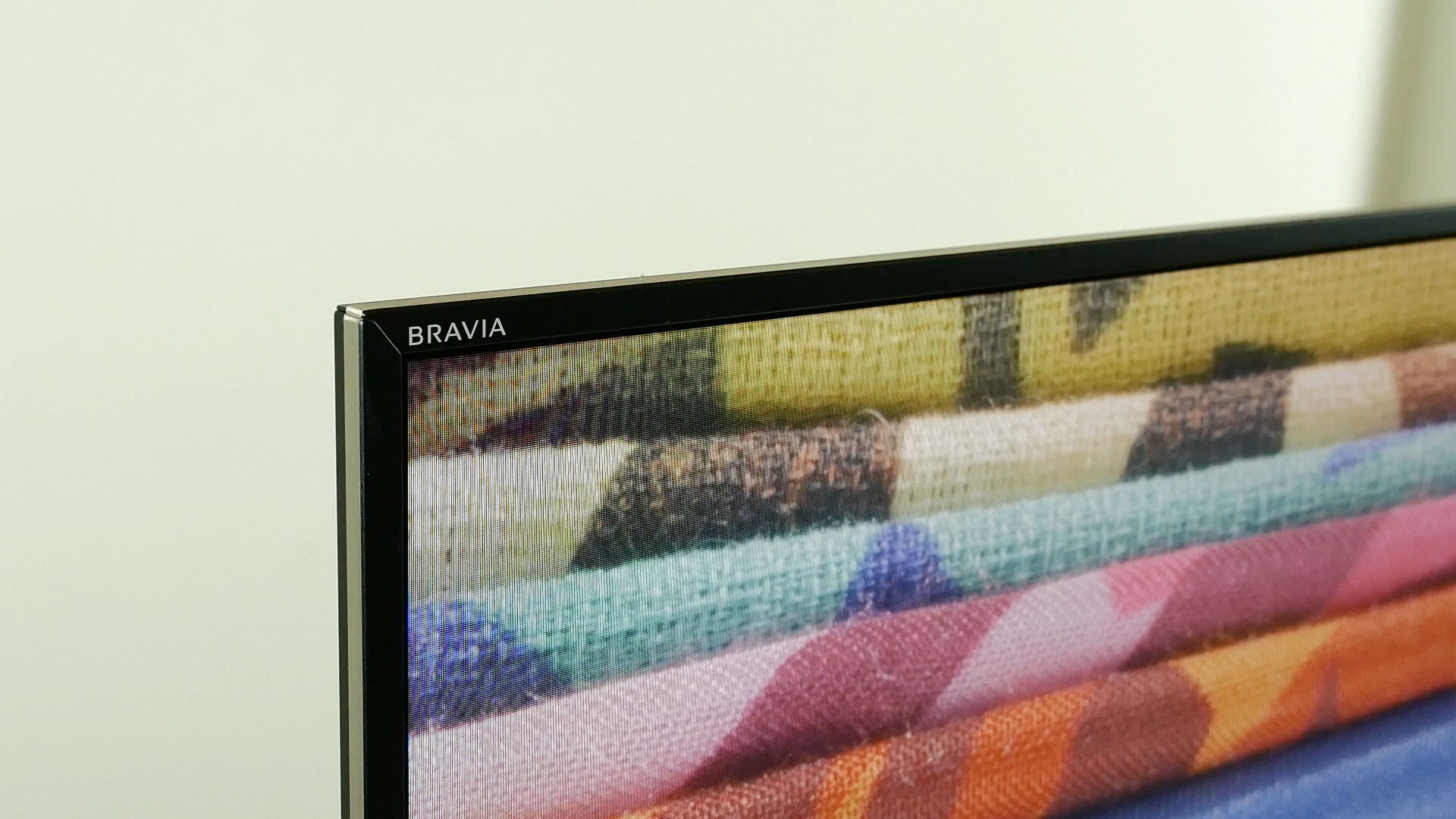

Given its direct-lit LED makeup, the Sony XE9005’s chassis is understandably slightly thicker than most edge-lit LED televisions these days. The black bezel is still impressively slim though, and carries a “BRAVIA” inscription on its top left corner. The display’s two-tone side trim adds a touch of class.


A Sony logo occupies the middle along the bottom border of the bezel, under which there’s LED illumination which you can choose to turn off from the user menu.


Defying the increasingly common trend of wider supporting feet, the LCD panel of the KD65XE9005 sits on a central pedestal stand that sports a brushed metallic silver finish. Like many Sony Bravias in recent years, the 65in XE90 uses an outboard power brick, although thankfully the connecting cables should be long enough to permit flexible installations.

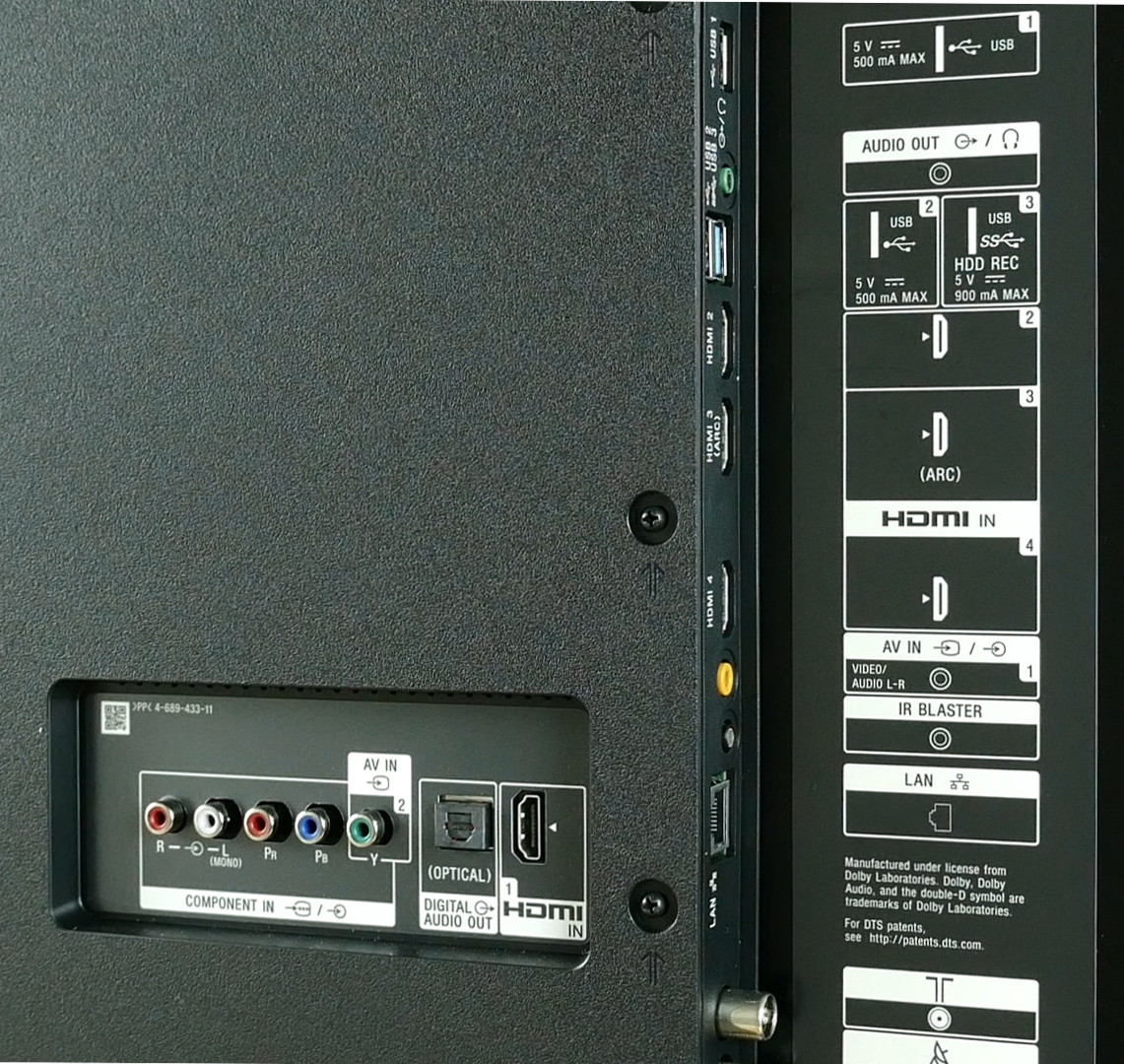

While the Sony KD-65XE9005 provides four HDMI ports with HDCP 2.2 compliance, only HDMI inputs 2 and 3 support 3840×2160 resolution at higher bit depth/ frame rates, which means that hooking up multiple 4K sources to the TV may be trickier if you don’t own a compatible receiver, soundbar or HDMI switcher through which to route the connections.



We calibrated our Sony XE9005 review sample using a Klein K10-A meter profiled to a JETI Spectraval 1511 spectroradiometer, a Murideo Fresco Six-G signal generator, and Portrait Display’s CalMAN Ultimate software. Even though there’s no advanced colour management system on board (as is the case for all Sony consumer televisions to date), [Adv. colour temperature] adjustments allowed us to reduce delta errors (dEs) to below the humanly perceptible threshold of 3 across most of the colour points we measured.

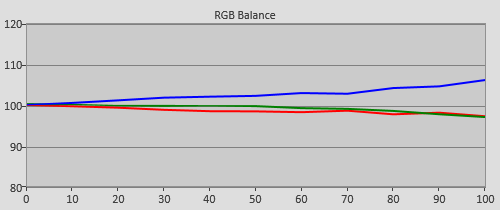

Pre-calibration RGB Tracking

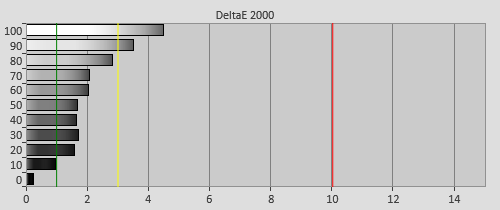

Pre-calibration Delta errors
Pre-calibration RGB tracking and delta errors (dEs)

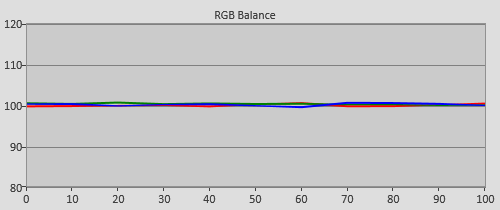

Post-calibration RGB Tracking

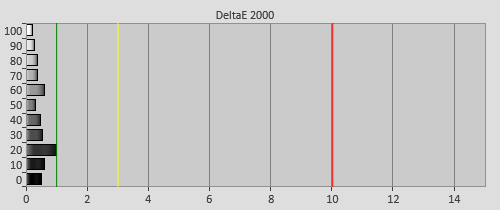

Post-calibration Delta errors
Calibrated RGB tracking and dEs after [Adv. colour temperature] adjustments


Pre-calibrated Gamma trackingPost-calibrated Gamma tracking
Pre-calibration gamma tracking (2.32)Post-calibration gamma tracking (2.4)


Post-calibration Colour saturation tracking
Post-calibration colour saturation tracking

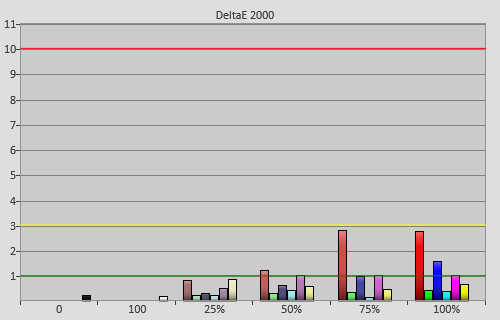

Post-calibration colour errors
Post-calibration colour errors (<3 not appreciable to the eye)

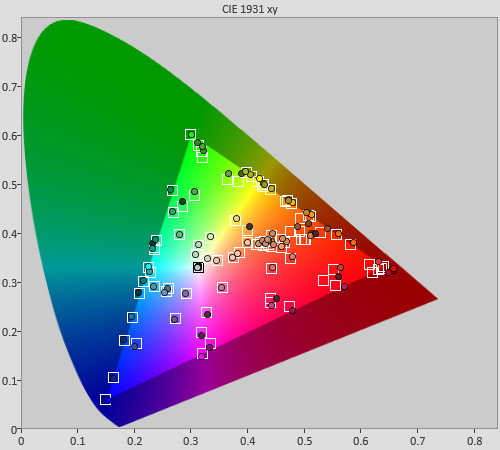

Post-calibration colour checker
Post-calibration Colour Checker SG test

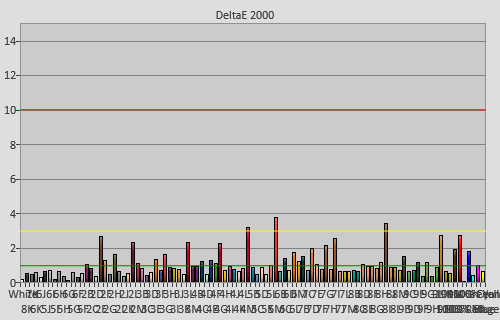

Post-calibration colour checker errors
Post-calibration Colour Checker SG errors (<3 not visible to the eye)

Benchmark Test Results

Dead pixelsNone
Screen uniformityVery good; mild dark corners
Overscanning on HDMI0% if [Screen Format] “Full” & [Display Area] “Full Pixel” or “+1
Blacker than blackPassed
Calibrated black level (black screen)LEDs dim down/ shut off
Calibrated black level (4×4 ANSI)0.033 cd/m2 with optimised [Auto local dimming]
Black level retentionAuto-dimming with full black screen
Primary chromaticity (Rec.709)Slightly oversaturated red primary
ScalingAlmost as good as on Sony X1 Extreme TVs
Video mode deinterlacingEffective jaggies suppression
Film mode deinterlacingPassed 3:2/480i+1080i & 2:2/576i with [Film Mode] enabled, but occasionally lost lock with 2:2/1080i
Viewing angle (cone)64°
Motion resolution1080 with [MotionFlow] “Clear” & “Custom
Digital noise reductionOptional; effective when engaged
SharpnessDefeatable edge enhancement
Luma/Chroma bandwidth (2D Blu-ray)Full luma & chroma in [Game] & [Graphics] modes
1080p/24 capabilityNo judder
2160p/24 capabilityNo judder
Measured panel refresh rate120Hz
Measured peak brightness880 cd/m2 (after calibration to D65)
Measured DCI-P3 coverage92%
Input lag (Leo Bodnar tester)31ms in 1080p SDR & 4K HDR
Full 4:4:4 reproduction (PC)Yes for 3840×2160@60Hz with [HDMI Enhanced Signal] on in [Game] & [Graphics] modes

Power Consumption

Default [Standard] mode*53 watts
Calibrated [Cinema pro] mode45 watts
HDR [Cinema pro] mode182 watts
Standby<1 watt

Picture Quality

The 65″ Sony XE90 uses a VA-type panel which generates deep blacks by LED LCD standards. Native black level (i.e. without the aid of local dimming) measured 0.044 cd/m2 on both a full-field black and a 4×4 ANSI chequerboard pattern once peak white was pegged at our usual dark-room target of 120 cd/m2.

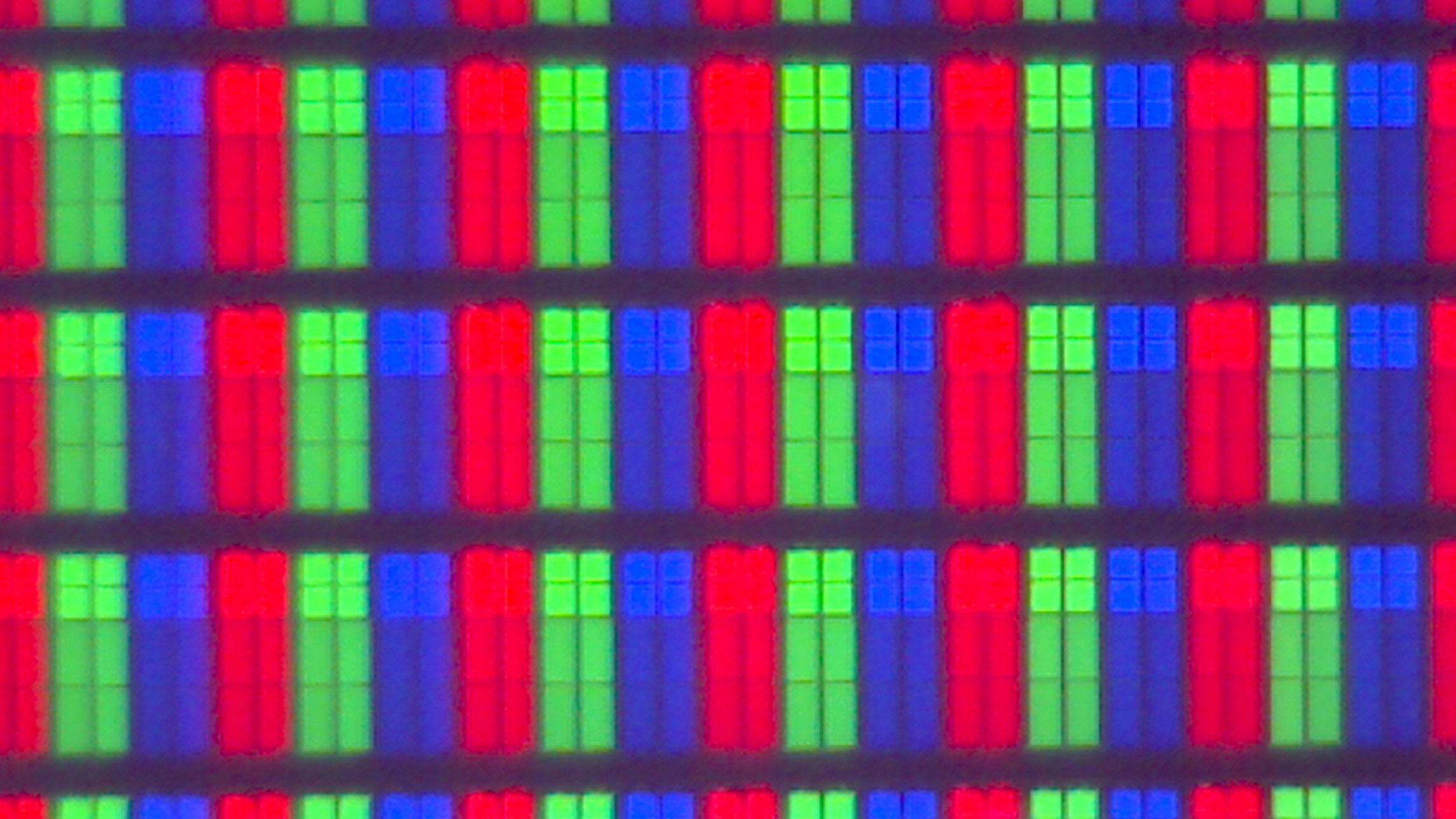

Subpixel structure
Macro photo of RGB subpixel layout confirming VA LCD matrix

Of course, one of the key selling points of the Sony KD65XE9005BU is full-array local dimming (FALD) backlight technology to improve blacks and contrast performance. Using our own custom-authored test pattern comprising a small white box crawling horizontally and then vertically along the edges of a black background, we counted five vertical columns and nine horizontal rows which totalled up to 45 independently dimmable zones.

With optimised [Auto local dimming] settings, blacks deepened to 0.033 cd/m2 on a 4×4 ANSI chequerboard pattern. Probably taking the relatively low zone count into consideration, Sony engineers have designed the Bravia XE9005’s local dimming algorithm to favour reducing blooming/ haloing artefacts over achieving inkier blacks. For example, if there’s bright white text against a black backdrop (for example during the opening credits of Miss Peregrine’s Home for Peculiar Children), the black background on the Sony KD-65XE9005 wouldn’t go as dark as the 648-zone Sony KD-65ZD9, let alone OLED TVs which boast pixel-level illumination control.

Motion processing is Sony’s forte, and the Bravia XE90 doesn’t disappoint in this aspect. Playback of 24Hz material (e.g. Blu-rays) was buttery smooth even without the help of motion-compensated frame interpolation (MCFI), and should you choose to engage MCFI, Sony’s implementation will introduce less soap opera effect (SOE) and interpolation artefacts than other manufacturers’.

[Motionflow] Off[Motionflow] Custom
[Motionflow] “Off”Optimised [Motionflow] “Custom”

The KD65XE9005 could attain 1080 lines of motion resolution (as judged via the horizontally scrolling lines in Chapter 31 of the FPD Benchmark Software test disc) assuming backlight scanning was employed with [Motionflow] set to either “Clear” or “Custom“. There’s some drop in light output, but the XE9005 offers enough brightness reserve to compensate.

Our Sony KD65XE9005BU review unit hit a peak brightness of 880 nits in HDR mode after calibration to the industry standard of D65 white point. DCI-P3 gamut coverage came in at 92%, which is similar to the XE94’s but not as wide as most other 2017 high-end sets:

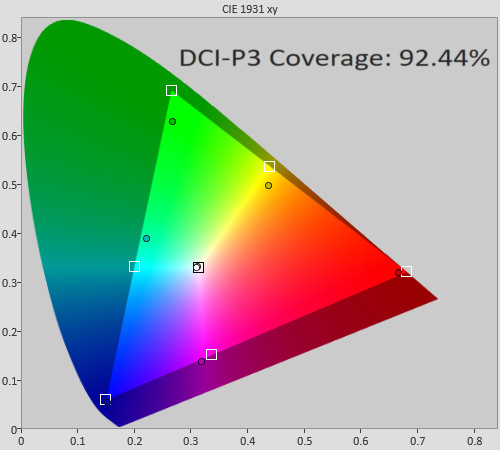

DCI-P3 coverage
UHD HDR colour saturation tracking against DCI-P3 gamut inside Rec.2020 container

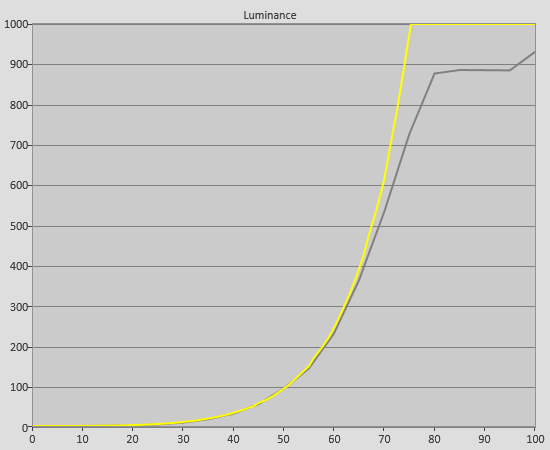

Like all Sony HDR televisions we’ve reviewed so far, the Bravia XE90 maintained the same PQ (perceptual quantisation) EOTF (electro-optical transfer function) tracking in 10% window measurements, ignoring 1000-nit vs 4000-nit static metadata in HDR10 content:

Click on the options below to compare PQ EOTF tracking:
1000 nits | 4000 nits

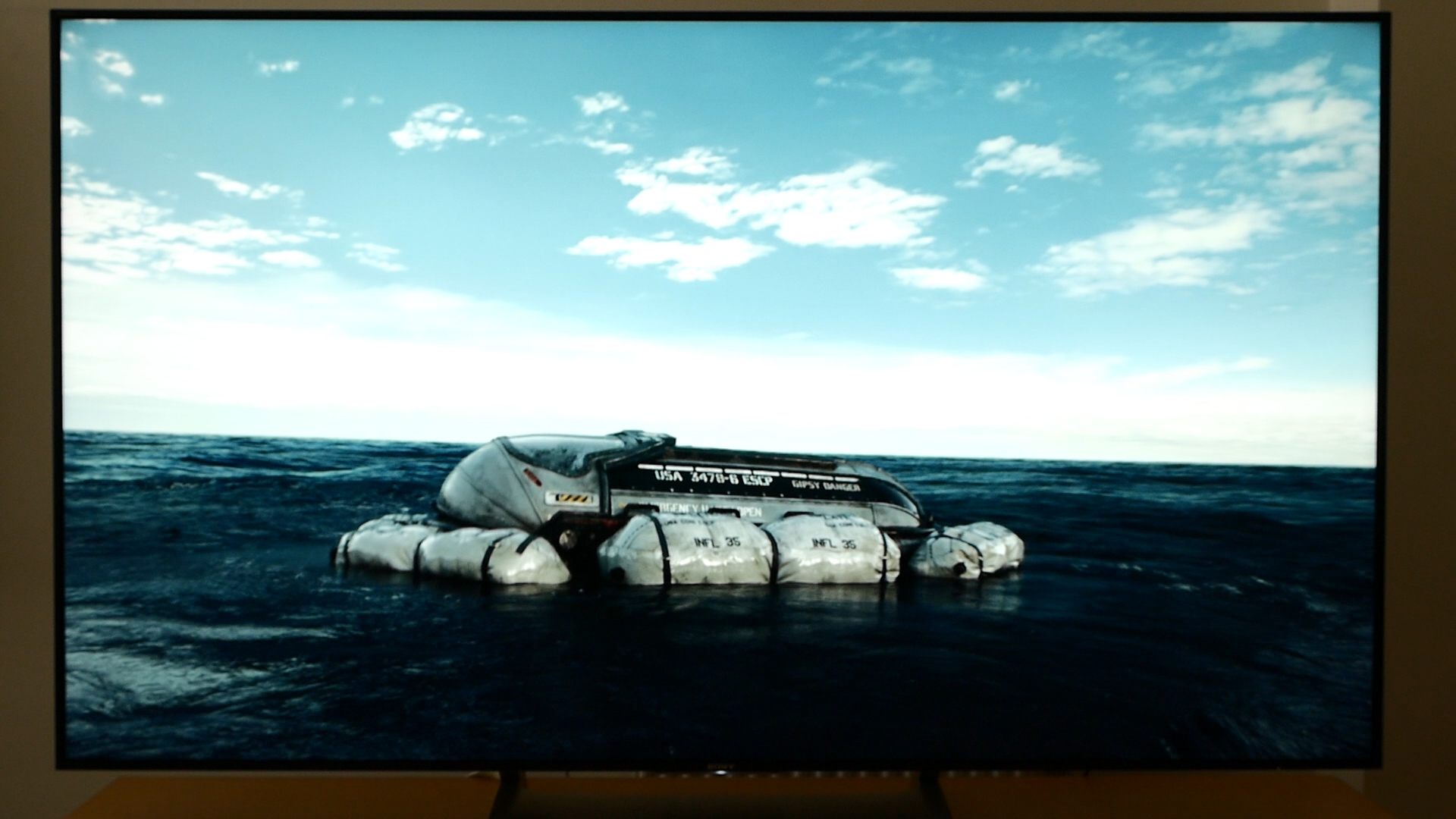

Helped by a peak brightness of 880 nits, relatively accurate PQ EOTF tracking up to 400 nits, and impressive local dimming algorithm despite the television’s low zone count, HDR presentation looked fairly impactful on the KD-65XE9005. However, in its most accurate [Cinema pro] picture preset (according to multiple sources at Sony), the XE9005 would discard some of the brightest specular highlight detail (for instance the cloud detailing in the following scene in Pacific Rim) to preserve overall brightness in 4000-nit-graded Ultra HD Blu-rays.

Pacific Rim

There is no established standard for tone-mapping anyway, and Sony’s stance is that such bright specular highlights are so rare throughout the entire film that it’s not worth sacrificing overall brightness to retain these bright details.

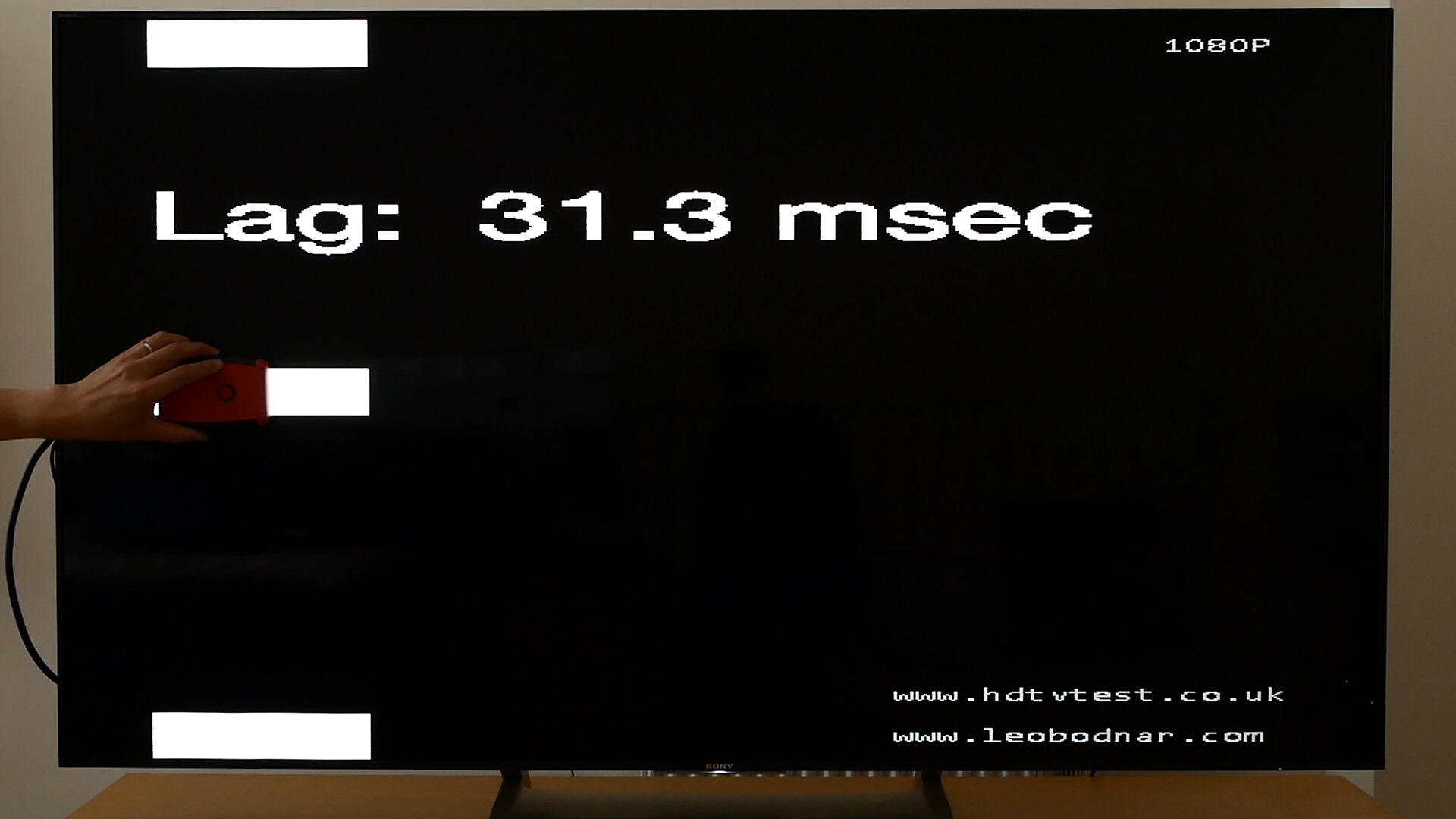

Input lag

Input lag measured using a Leo Bodnar tester measured 31ms in [Game] and [Graphics] presets which both also reproduced full 4:4:4 chroma with [HDMI Enhanced Signal] set to “Enhanced“. Unlike Sony TVs equipped with the X1 Extreme chipset, the KD65XE9005 exhibited the same 31-ms-latency regardless of whether the incoming video signal was 1080p or 2160p.

Video Review


Sony has produced a number of excellent TVs this year, and the Bravia XE90 is yet another one which will likely end up being the most compelling in its price class, thanks to its full-array local dimming (FALD) direct-lit LED backlighting (which also lends itself to very good screen uniformity), excellent video and motion processing, 880-nit peak brightness, as well as low input lag.
